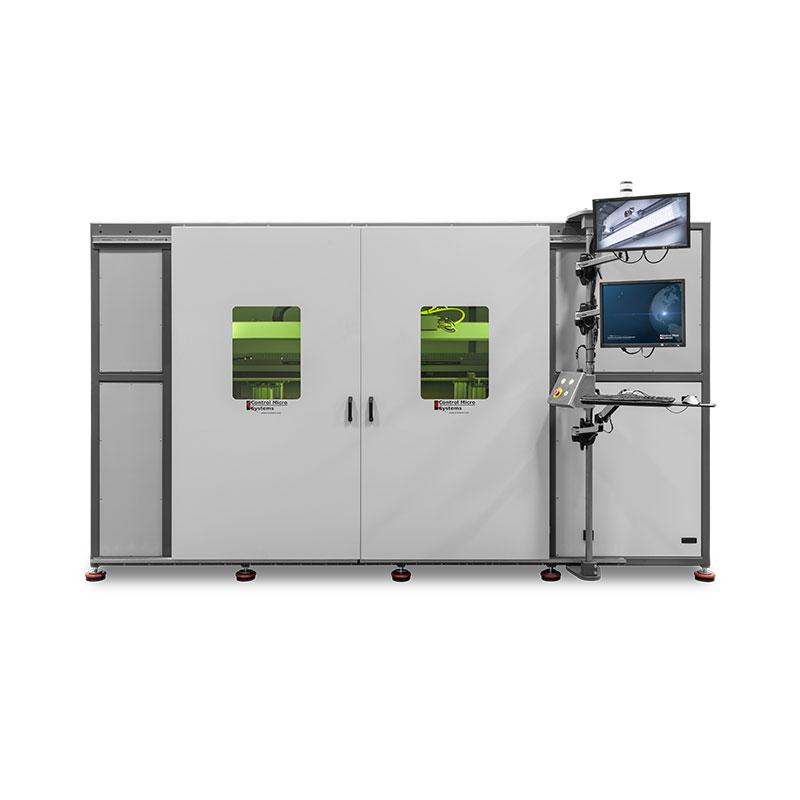

Gantry Large Format Laser Marking Systems

Ideal for large part marking applications, CMS Laser’s gantry systems are perfect for manufacturers requiring extra room for processing.

Our large format workstations are the ultimate solution for large parts that require multiple locations for processing. Our gantry laser marking systems utilize three axes of motion (XYZ) to cover a large work envelope. A motorized worktable can accommodate a wide range of part heights, giving you ultimate control.

Systems can be configured for other laser applications, such as cutting, drilling, and welding.

System Features:

  • XYZ gantry laser marking system with a large work area.
  • Height adjustable fixture table for accommodating tall parts.
  • Custom multi-function fixtures for a wide range of parts
  • Replace the gantry laser with a robot for ultimate versatility.
  • All laser sources available—based on applications lab testing results
  • Welded steel frame with aluminum paneling for long-lasting industrial use
  • Safety light curtains and touch sensor activation for additional operator safety
  • CDRH Class I laser workstation with emergency stop push button
  • Ergonomic arm with 19” monitor, keyboard, and mouse or touchscreen display
  • CMS LaserGraf5 software with Windows® 10 64-bit operating system
