PCB Cutting System with CO2 Laser

Replace mechanical routers with non-contact laser cutting technology for separating printed circuit boards.

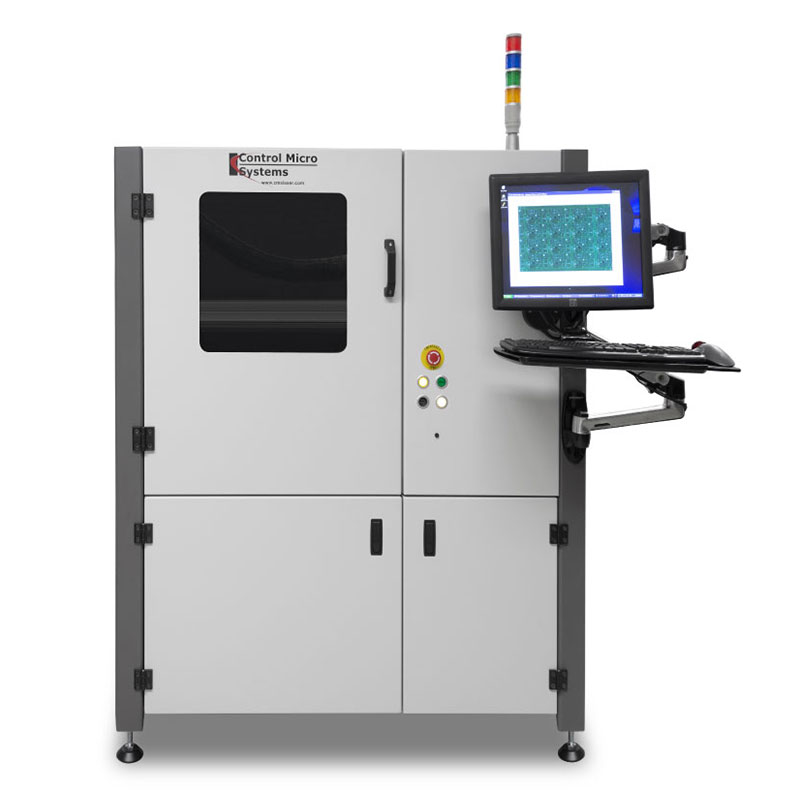

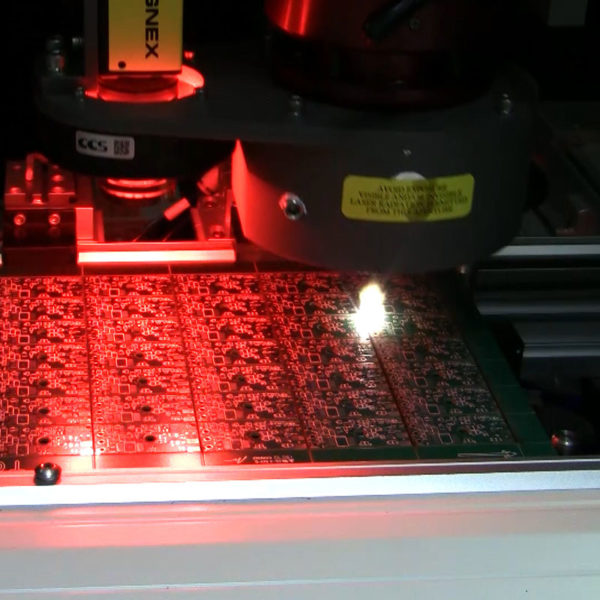

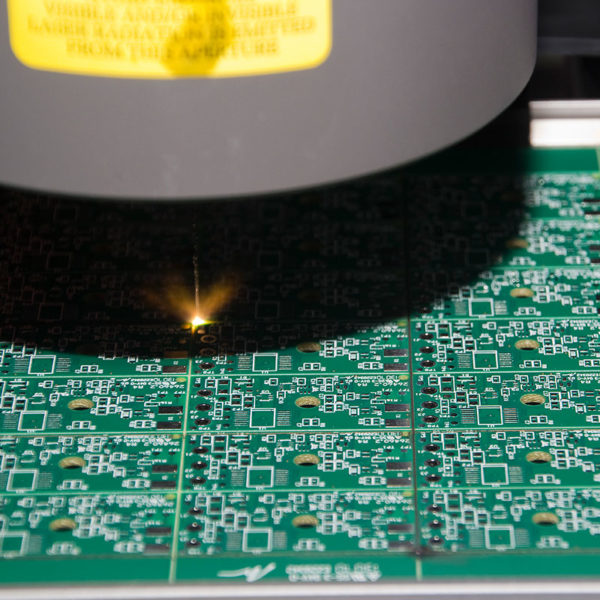

Laser depaneling systems are gaining popularity—especially as circuit board complexity and component ratios continue to rise. Our standard CO2 depaneling system configuration features an air-cooled CO2 laser mounted to a computer-controlled XY motion system for precise cutting of PCBs. Using machine vision, board fiducial markings are used for pinpoint laser accuracy. A powerful solution for microelectronics that require close tolerances and minimal debris.

System Features:

  • Laser cutting source with machine vision for locating board fiducial markings
  • CO2 or UV laser sources available—based on applications lab testing results
  • Systems configured for standalone operation or SMT line integration
  • PCB conveyor capable of carrying boards up to 20” x 18” in size
  • Automatic board entrance/exit slots with safety interlocks
  • Welded steel frame with aluminum paneling for long-lasting industrial use
  • CDRH Class I laser workstation with emergency stop push button
  • Ergonomic arm with 19” monitor, keyboard, and mouse or touchscreen display
  • CMS LaserGraf5 software with Windows® 10 64-bit operating system
