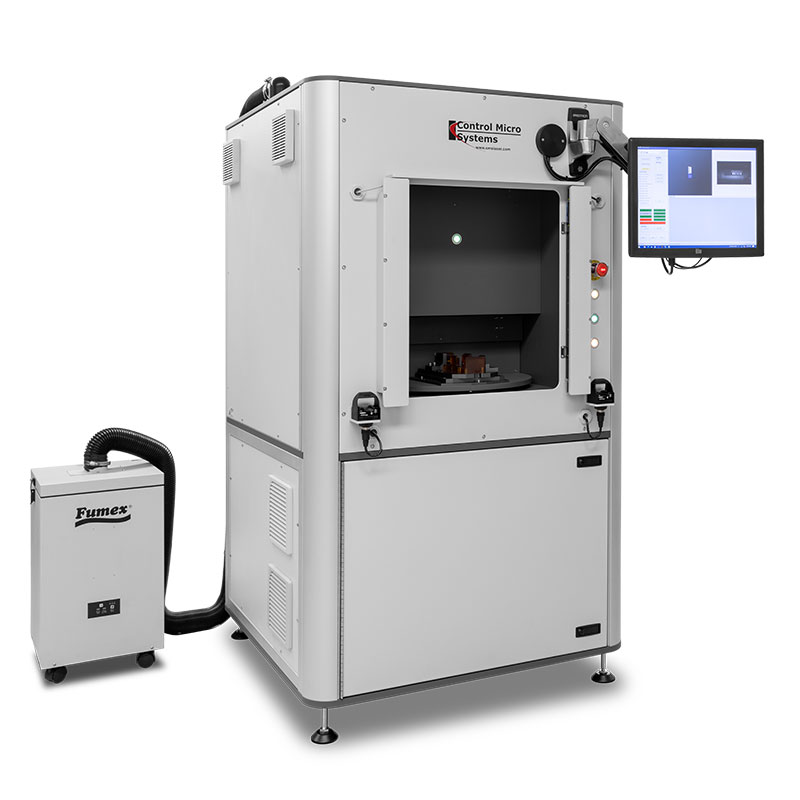

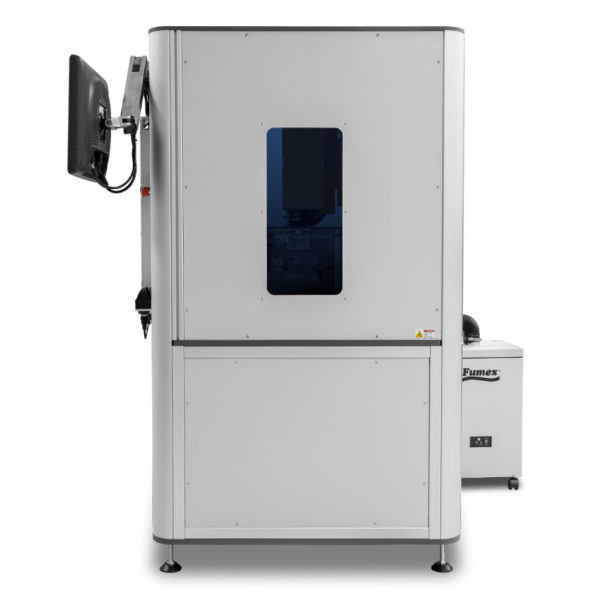

Rotary Table Workstations

Designed for high throughput and efficiency. Load one side of the table while processing parts inside the system.

Rotary table systems allow operators to load one side of the processing table while the other is under the laser. This configuration speeds up production rates and reduces laser downtime because of manual part loading. Custom designs with more than 4-position tables will allow greater processing possibilities, such as pre- and post-process vision inspection.

This laser system design is configurable for any type of laser application—marking, cutting, drilling, and welding.

The laser source is chosen by CMS Laser’s applications lab through a free in-house sample testing study to determine the best laser and optics for the given material. CMS Laser’s engineers will work with you to develop the process and decide on additional components needed.

System Features:

  • Rotating worktable for maximum part processing efficiency
  • No maximum on the number of table positions–more positions allow for additional pre- and post-process procedures.
  • All laser sources available—based on applications lab testing results
  • Welded steel frame with aluminum paneling for long-lasting industrial use
  • CDRH Class I laser workstation with emergency stop push button
  • Safety light curtain and touch sensor activation for additional operator safety
  • Ergonomic arm with monitor, keyboard, and mouse or touchscreen display
  • CMS LaserGraf5 software with Windows® 10 64-bit operating system
